Portable Power Analyzer

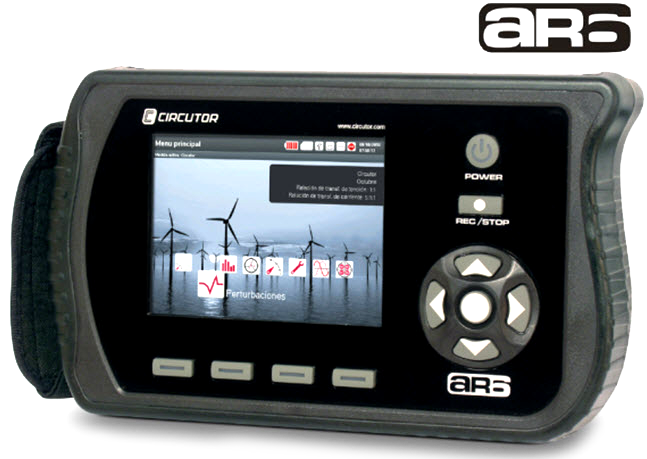

Portable Power Analyzer AR6
- Made base on standard:
- EN 61000-6-4 (2002), Industrial emissions.
- EN 55011 (1994), Driven (EN 52022 – Class B)
- EN 55011 (1994), Radiated (EN 55022 – Class A)
- EN 61000-6-2 (2022), Industrial immunity
- EN 61000-4-2 (1995), Electrostatic discharge
- EN 61000-4-8 (1995), Rapid transient bursts
- EN 61000-6-1 (2002), Domestic immunity
- EN 61000-4-11 (1994), Power supply outages
- Using USB port for communication
- Suitable with pin AR5-L
- Dimension = 283 x 168 x 80 mm
- Screen size = 5.7“ color VGA
- Display graphic phasor, harmonic, and wave signal
- Could measure transient and waveform
- Include with internal clock for recording maximum and minimum value with time information when it happens
- Capable to record electrical parameters for 10 years
- Compatible with software Power Vision Plus to easier in maintain measuring data result
- Maximum 10 input measurement = 5 input voltage (R,S,T,N, and Ground), 5 input current (R,S,T,N, and Leak)
- Have photo function to capture waveform and electrical parameter displayed
- Virtual keyboard to input parameter configuration
- Simultaneous measurement of leakage current and current measurement of each phase
- Class 0.5
- Power Supply battery NiMH (Nickel Metal Hydride)
Portable Power Analyzer C-80/2000
- Made base on standard IEC 61010-6-1, IEC 61010-6-2, IEC 61010-6-3, IEC 61010-6-4
- Class 1
- Capable to measure and record all parameters in one and 3 phase
- Could do calculation for ideal capacitor bank
- Give alarm if there is harmonic distortion
- Power supply battery 2x1,5 Vdc (type AA)
- Dimension = 172 x 100 x 50 mm, also with bag
- Could detect THD
Clamps CP
- Maximum conductor diameter = 20 mm
- Maximum copper busbar size = 20x5 mm
- Working frequency : 48 Hz till 65 Hz
- Scale 1% (for CP-5), scale 0,5% (for CP-100)
- Output voltage = 2 Vac
